StrataRise Multi-Level 3560 Pedestals are adjustable in height from 35mm to 60mm (1.37" to 2.36"). The adjustable height can be increased by using one or more of our QuickClick, bayonet fitting, extension pieces to achieve other required height ranges. The system can be extended in height as required - for higher installations please see our Mid range 60115ML & Max 115220ML pedestal bases.

The multi-level pedestals make it easy to achieve perfect levelling of beams or joists for Flooring or decking support.. The system is very easy to use and aids quick, precise and professional installation.

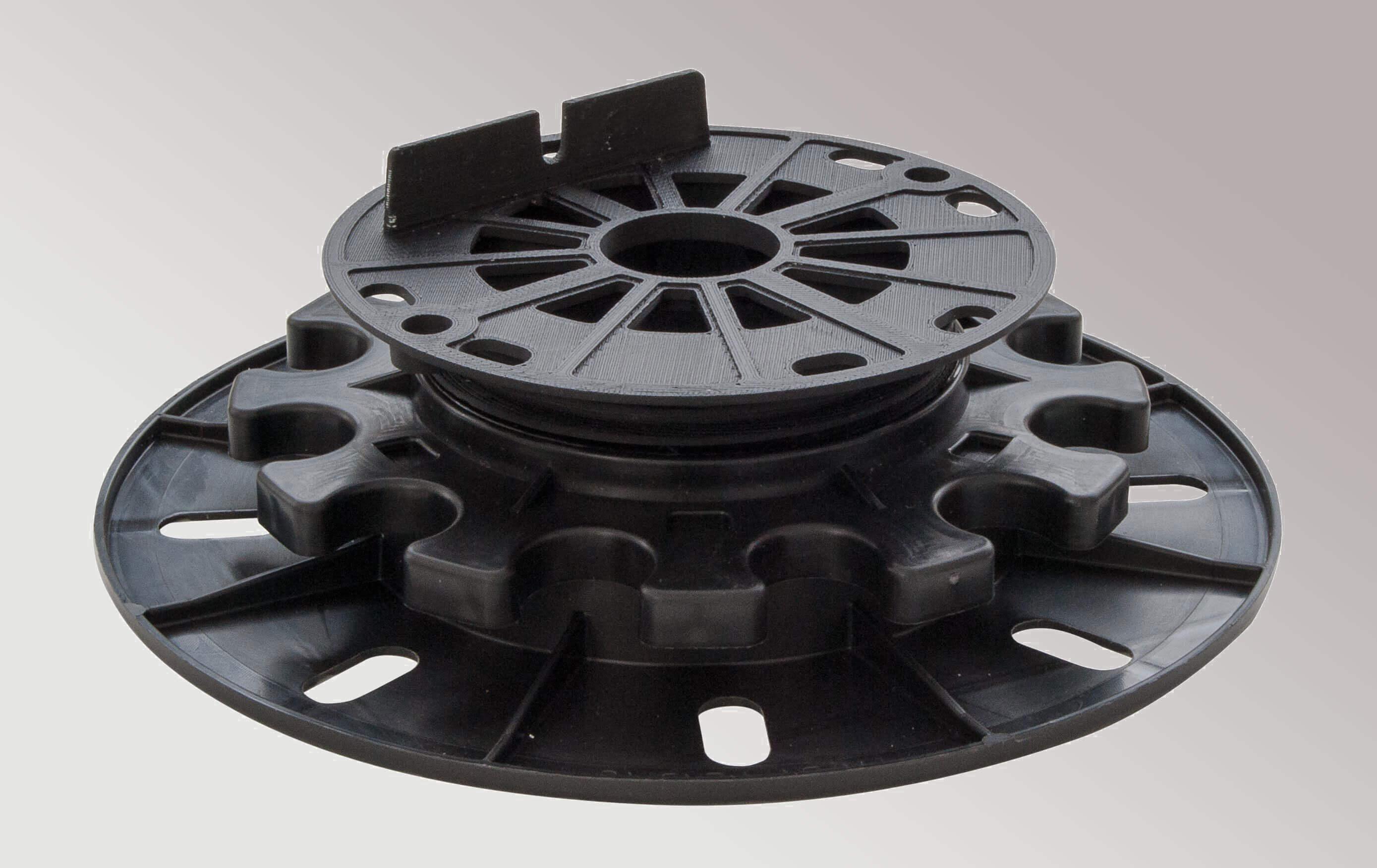

Each support is composed of a threaded head section, with a fixing flange with screw slot for attaching to the joist or beam. The head is wide enough to accept joists up to 75mm (3") wide and is suitable for all common heights. An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the joists thus allowing for extremely easy and fast installation.

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the joists thus allowing for extremely easy and fast installation.

The large 200mm (8”) base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional 3mm (1/8") thick anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where decks are mounted on balconies or roof areas, as well as for floors in multi-occupancy buildings.

3560ML self-leveling pedestal supports are tested to withstand loads of 800kg (1760 lbs) at their weakest setting, i.e. maximum height adjustment with just one thread engaged. The normal spacing apart for the 3560ML-DF is at 500mm to 600mm (18" to 24") centers along each joist for most projects, potentially saving up to 50% on units required for many projects when compared with other systems.

StrataRise Pedestals ... the professional's choice!

Suitable for laying over membranes and insulating panels

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.

This versatile pedestal support can be used with most types of support joists and beams for flooring and decking.

Designed for the Professional

Designed for the professional, with industry leading specifications, our pedestals are fast and easy to work with, allowing precise adjustment without any need to lift off the joists to make adjustments. Bayonet fitting extenders enable easy customisation to any height. With just 4 components (pedestal plus 3 sizes of extenders) you have the complete system to suit all heights and nearly every application. Low profile versions are also available - see our 1836LP Range -
CLICK HERE

Frequently Asked Questions

What is the height adjustment range of the 3560ML pedestals?

The 3560ML-DF pedestals have a core adjustment range of 35mm to 60mm (1.37" to 2.36"). This range can be significantly extended using our QuickClick bayonet-fitting extension pieces, allowing you to build up to heights of 500mm (20") or more for virtually any project requirement.

What is the maximum load capacity of a single pedestal?

Each 3560ML pedestal is rigorously tested to withstand a point load of 800 kg (1760 lbs) at its weakest setting (maximum height adjustment with minimal thread engagement). This high load rating ensures a safe, stable, and reliable foundation for decking and raised flooring.

Can I use these pedestals on a waterproof membrane or insulation?

Yes. The large 200mm (8") diameter base plate provides excellent load distribution, making the system perfectly suitable for installation on top of waterproofing membranes, rigid insulating panels, and any other solid, compact surface. An optional 3mm anti-slip rubber base pad is available for extra protection and noise reduction on sensitive surfaces like balconies.

How do I achieve heights greater than 60mm?

The system is designed for easy extension. To achieve greater heights, you can add one or more of our QuickClick extension pieces. These use a simple bayonet fitting for quick, secure attachment without tools. For high installations, please refer also to our 60115ML or 115220ML pedestal systems which have higher bases and greater adjustment ranges.
CLICK HERE

What is the recommended spacing between pedestals?

For most decking and flooring projects, we recommend spacing pedestals 500mm to 600mm (approximately 20" to 24") apart along the center of each joist. This efficient spacing provides optimal support and can reduce the number of units required by up to 50% compared to other systems.

Does this model have self-levelling functionality?

The 3560ML-DF model featured on this page is a fixed-head support pedestal. It provides highly precise manual height adjustment via the threaded ring. If your project requires automatic compensation for slopes between 0° and 5°, please see our range of Self-Levelling (SL) pedestals.
