1836LP-DF Low Profile Fixed Head Pedestals for Decking & Flooring

Adjustable from 18mm to 36mm (0.7" to 1.4") - designed for low threshold height projects

The Low-Profile 1836 Fixed Head pedestal is a specially designed support for use in areas where low threshold heights are encountered. Each support is composed of a threaded head section, with a fixing flange with screw slot for attaching to the joist or beam. The head is wide enough to accept joists up to 75mm (3") wide and is suitable for all common heights.

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the joists thus allowing for extremely easy and fast installation. As standard each Low-Level 1836 pedestal comes complete with one 9mm (3/8") extender ring (this can be fitted by lifting the head out of the base, inserting the ring and replacing the head).

A large 200mm (8") base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations.

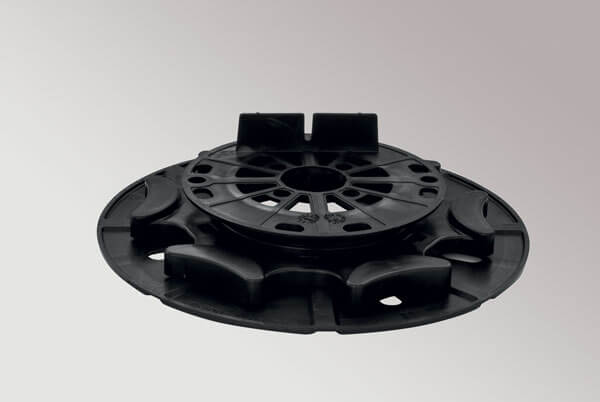

Stratarise 1836LP-DF Low Profile Joist Support Pedestal

An optional 3mm (1/8") thick anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where decks are mounted on balconies or roof areas, as well as for floors in multi-occupancy buildings.

StrataRise pedestals are robust and can withstand high loads of at least 800kg (1760 lbs) at maximum height extension (i.e. with one thread engaged). Normal pedestal spacing for installations is at 500mm to 600mm (20" to 24") centers along each joist for most projects, potentially saving up to 50% on units required for many projects when compared with other systems.

StrataRise Pedestals ... the professional's choice!

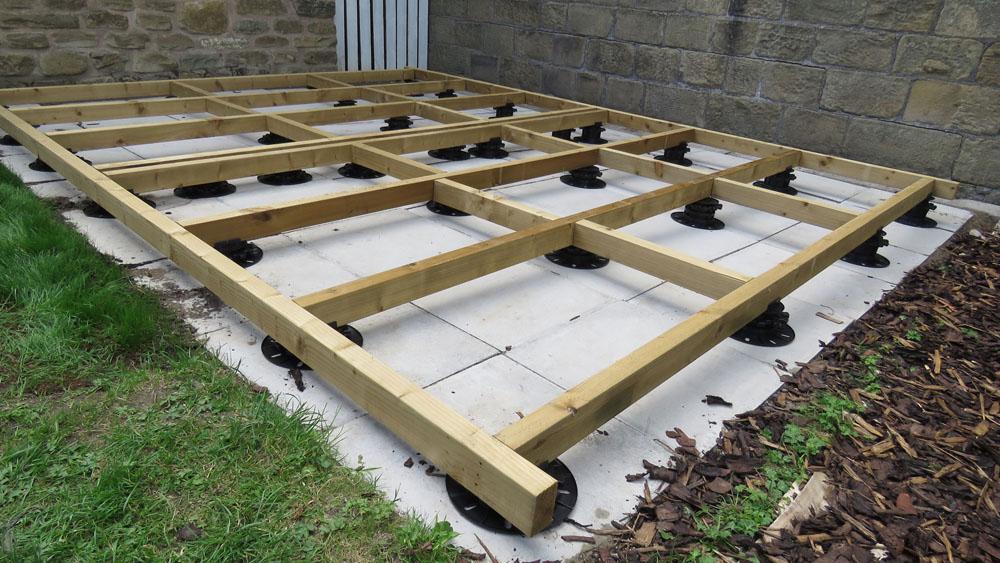

Joist Support Framework for a Garden Shed leveled with Stratarise Pedestals

Technical Data

Stratarise 1836 Support Pedestals -Technical Details
Ref No. 1836LP-DF-30 1836LP-DF-10 1836-EX9-30
Description Low Profile Joist Support Pedestal with 1 fixed tab Height Extender Ring
Height Adjustability 18mm to 36mm (0.7" to 1.4") 9mm (3/8")
Pack Qty. 30 10 30

Suitable for laying over membranes and insulating panels

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.

This versatile pedestal support can be used with most types of support joists and beams for flooring and decking.

Designed for the Professional

Designed for the professional, with industry leading specifications, our pedestals are the fastest and easiest to work with, allowing precise adjustment without any need to lift off the joists to make adjustments. Each 1836LP Pedestal is supplied with one 9mm (3/8") height extender ring as standard.

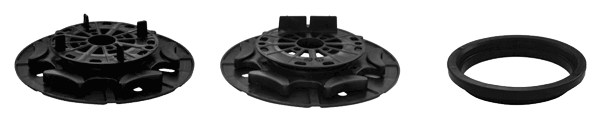

Stratarise 1836 Low Profile Pedestals
