ProDrain and QuikDrain Drainage Solutions

Designed for professional use in public and private locations. Made to meet or exceed the DIN19580 / EN 1433 standards.

Channel drains, also known as trench drains or drainage channels, are arguably the most important component of modern drainage systems. StrataRise Channel Drains and Catch Basins (Inspection Chambers) are an excellent choice for effective drainage solutions. Our wide range of innovative products offer numerous advantages and features that make them stand out in the market.  For more information about Drainage - click here.

The main advantages and selling points of StrataRise Channel Drains and Catch Basins are:

  • Two ranges of Channel Drains to choose from: The ProDrain range is our professional quality, heavy duty, product line with extra thick walls and high strength offering solutions all the way from around the home right up to the heaviest applications for ports, airports, etc.  The QuikDrain product line is designed and constructed for domestic and lighter vehicle applications.
  • A wide range of advanced design Catch Basins and Inspection Chambers: The catch basins are made from polypropylene and are available in a range of sizes, from 200 to 700mm (8" to 28") square, to suit any application. Siphoned traps are also available on many of the products to prevent drain odours.
  • Superior Drainage Performance: StrataRise Channel Drains and Catch Basins are designed to efficiently collect and channel water, preventing pooling and potential water damage. Their advanced designs ensure effective water flow, reducing the risk of flooding or water accumulation. Channels are designed with lateral and bottom connection outlets, as well as with integral provision for T-joints and Cross-overs where possible, so no need to buy extra components.
  • Durable and Long-lasting: These products are built to withstand heavy loads and harsh weather conditions, ensuring long-term durability. Made from high-quality HDPE or PP materials, StrataRise Channel Drains and Catch Basins offer exceptional strength and resistance, making them a reliable choice for both residential and commercial applications.  Most catch basins are offered with options for odour control as well as with a wide variety of lids or gratings to suit every requirement.
  • Easy Installation and Maintenance: Installing StrataRise Channel Drains and Catchpits is a hassle-free process, thanks to their user-friendly slot together design. With simple installation instructions and minimal maintenance requirements, these products provide convenience and time-saving benefits.
  • Versatile Applications: StrataRise Channel Drains and Catchpits are suitable for various applications, including driveways, patios, poolside, gardens, parking, roadway and commercial areas. Their versatility allows for seamless integration into different landscapes, providing effective drainage solutions wherever needed.
  • Aesthetically Pleasing: In addition to their functional benefits, StrataRise Channel Drains and Catchpits are aesthetically pleasing. They feature a range of grate types, materials and designs that complement any outdoor space, enhancing visual appeal while efficiently managing water drainage.

Overall, StrataRise Channel Drains and Catch Basins offer superior design, superior drainage performance, durability, easy installation and maintenance, versatility, and aesthetic appeal. The products are made to meet or exceed the DIN19580 / EN 1433 standards - the only recognised international standard written specifically for Channel / Trench Drains. These qualities make them an excellent choice for anyone seeking reliable and efficient drainage solutions.

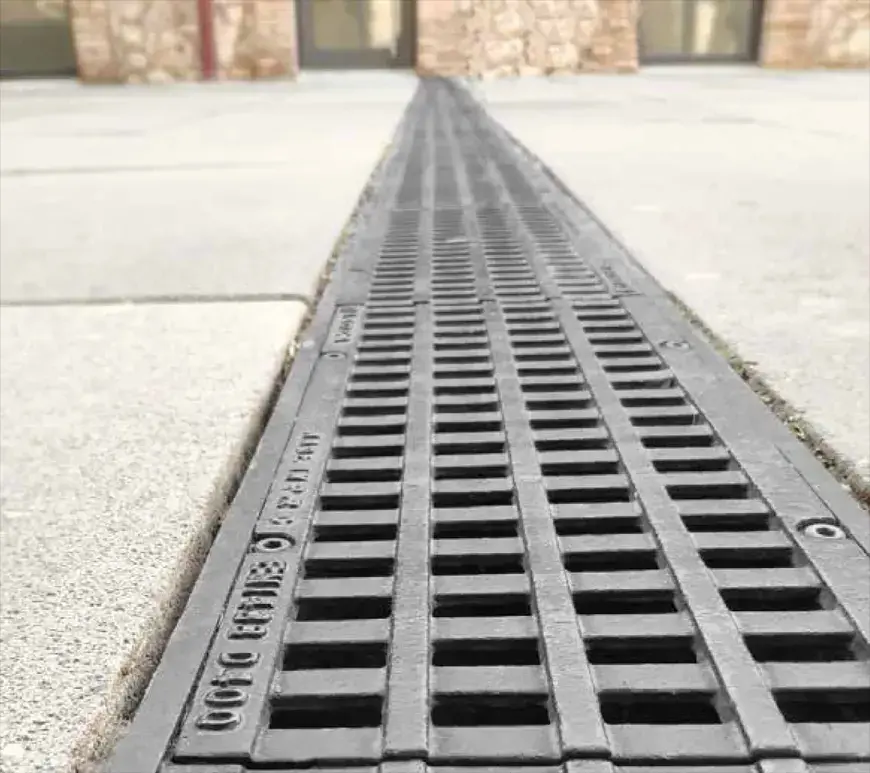

Stratarise Prodrain 370 heavy duty channel drain with cast iron grating

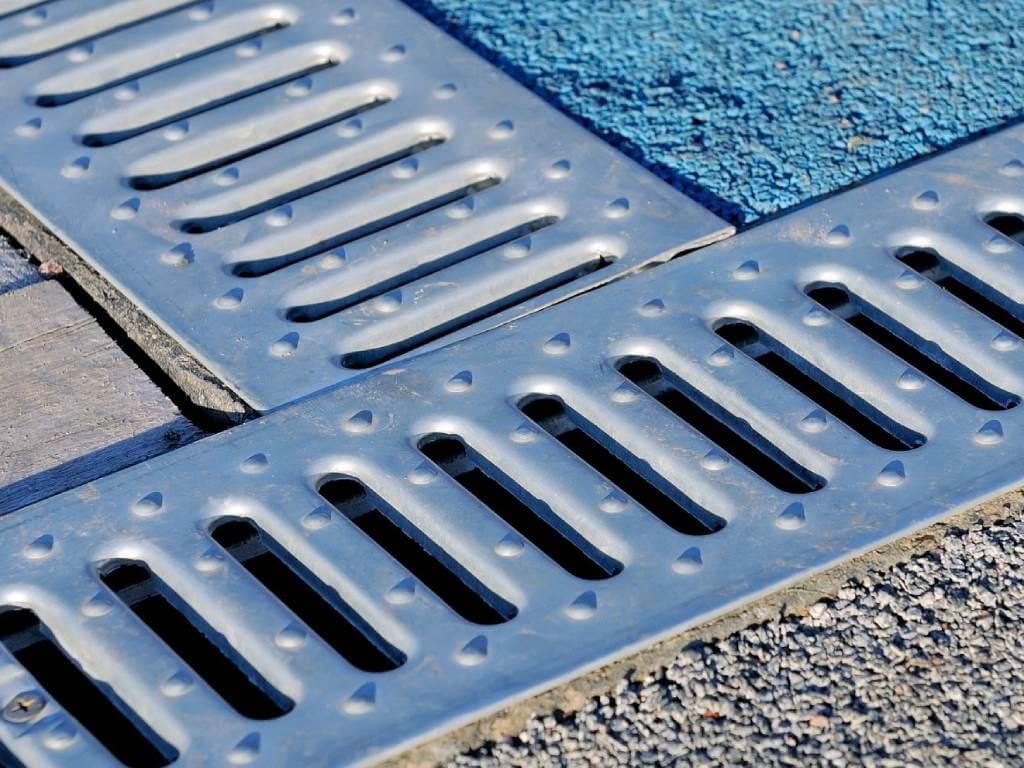

StrataRise Channel Drains with incorporated T and crossover connections

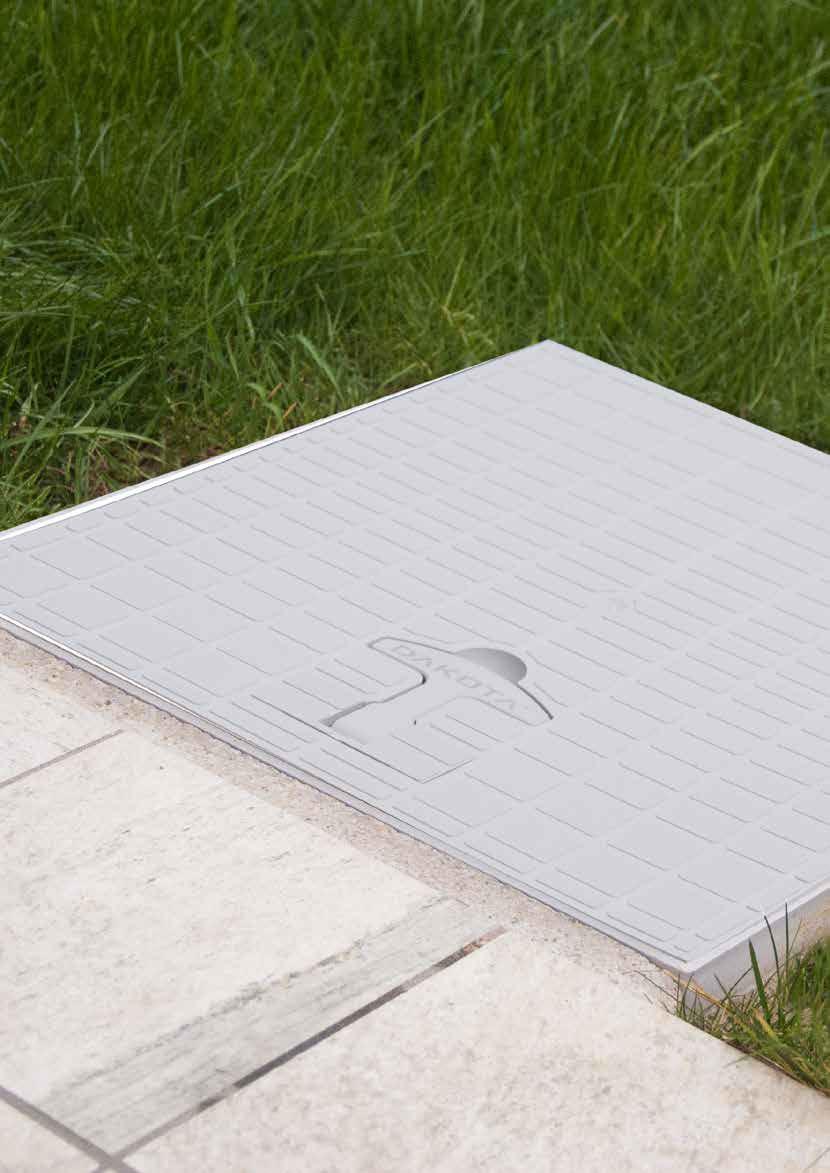

StrataRise Catchpit with lift up cover

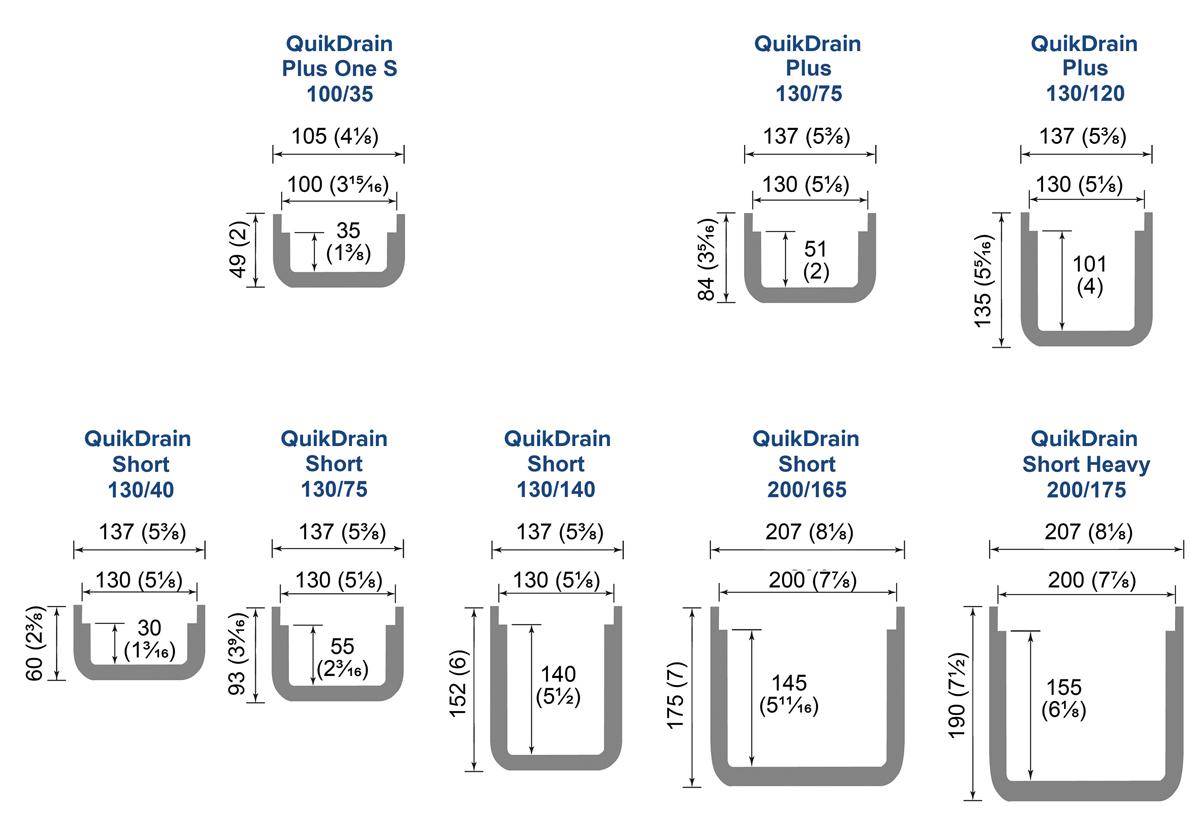

QuikDrain range - technical information (sizes)
Domestic and Light Traffic Classes
A15 up to C250 - up to 25 metric tonnes

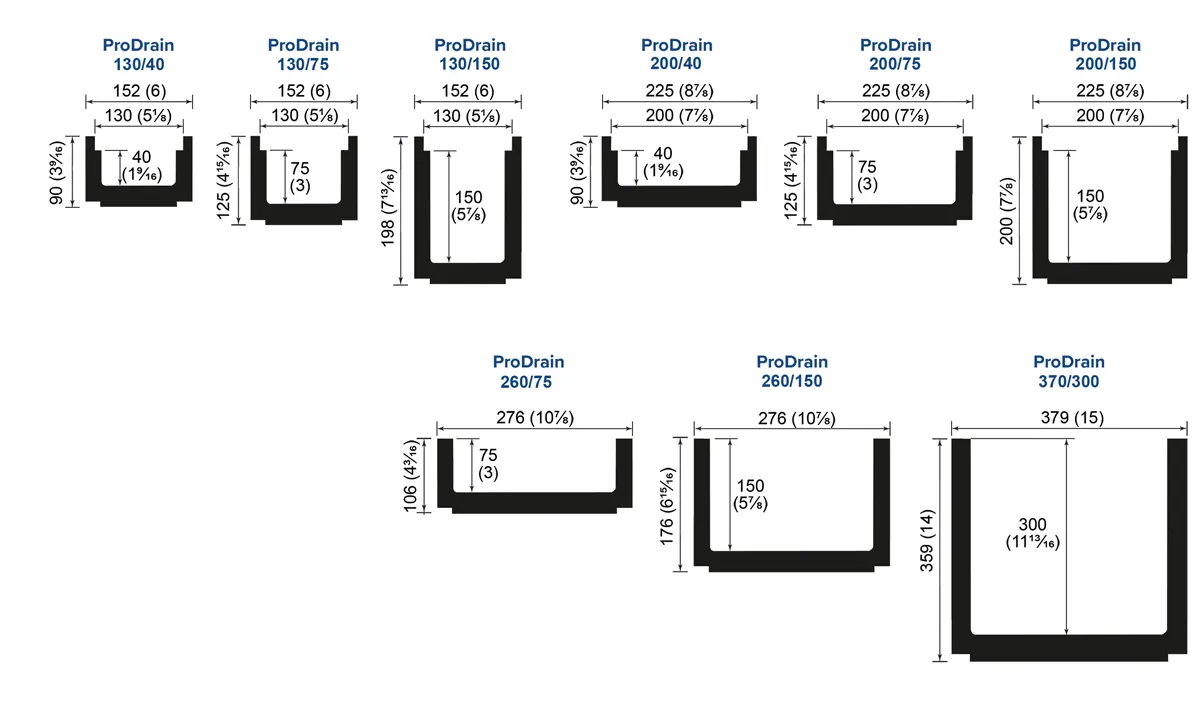

ProDrain range - technical information (sizes)
Heavy Duty Professional Range
all classes up to F900 - 90 metric tonnes
