StrataRise Multi-Level Mid & Max Pedestals for Pavers & Decks

Adjustable 60mm to 115mm (2.36" to 4.53") & 115mm to 220mm (4.53" to 8.66") - height extendable with QuickClick Extenders

StrataRise Multi-Level Mid and Max Range Pedestals are designed for higher rise installations of Joist supported Decks or for Pavers and Deck Tiles. With reinforced raised level base stands and 55mm (2") or 105mm (4") of adjustment as standard, these pedestals start from an installation height of 60mm (2.36") adjusting to 115mm (4.53") or from 115mm (4.53") adjusting up to 220mm (8.66") as standard. The installation height can be increased in steps of 50mm (2") for the Mid Range using Stratarise EX50 and 100mm (4") for the Max Range using EX100 QuickClick extensions, as required.

Please note - for high rise installations it is essential to ensure the structure is anchored to prevent lateral movements.

StrataRise multi-level pedestals make it easy to achieve perfect flatness of the final floor, deck or paved area. The system is very easy to use and aids quick, precise and professional installation.

Each support is composed of a threaded head section, with a vertical flange for fixing joists into position, or with 4 tabs, 4mm (5/32") in width, for tile or paver spacing, Spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centres of large slabs, or at T-joints and sides.

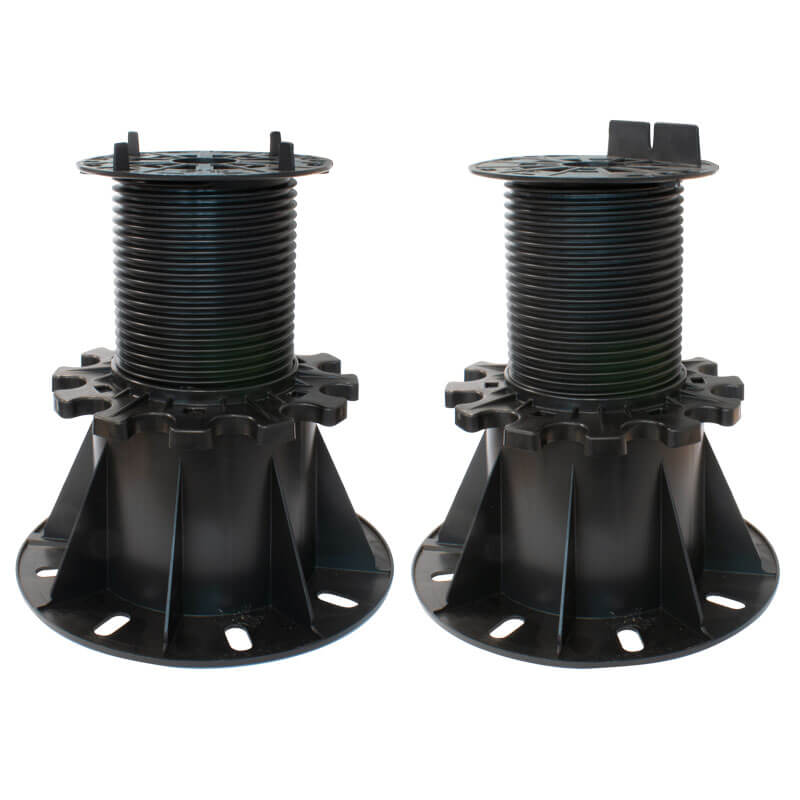

Stratarise Multi-Level Mid & Max Pedestals

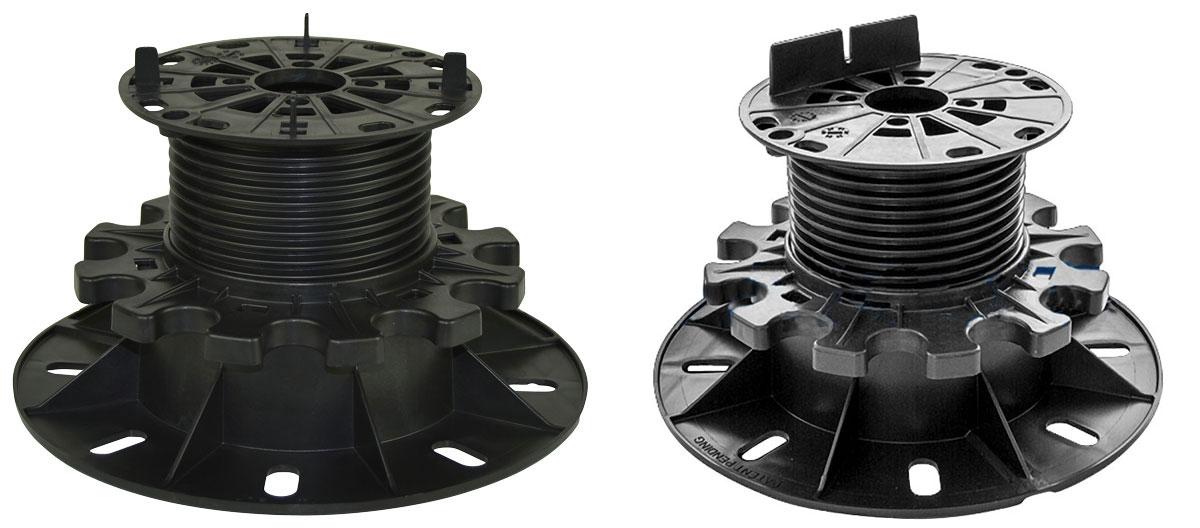

Stratarise Multi-Level Mid range Pedestals

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation.

The large 8" (200mm) reinforced raised base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An optional 3mm (1/8") thick anti-slip, cushioning, rubber base ring is available for use on membranes, etc. This effectively reduces transmitted noise where pavers and decks are mounted on balconies or roof areas.

We recommend the use of our optional acoustic cushioning ring for the support head area for tile and paver installations. These help to bed corners securely, prevent any rattling, and reduce transmitted noise through the support system.

StrataMax pedestal supports are tested to withstand loads of up to 2190lbs (990Kgf) at their weakest setting, i.e. maximum height adjustment with just one thread engaged.


StrataRise Pedestals ... the professional's choice!

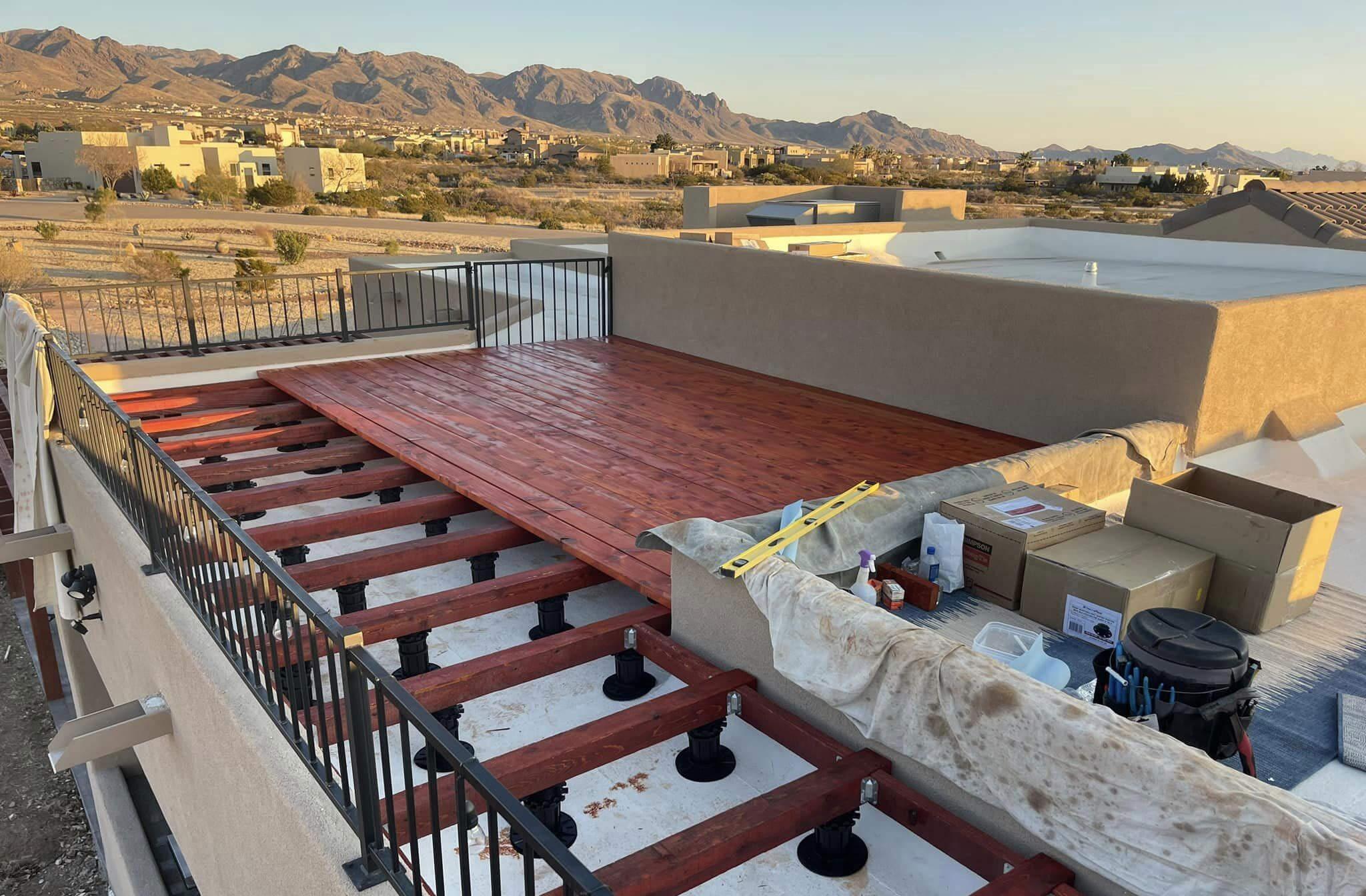

Deck Mounted on Stratarise Pedestals

Technical Data

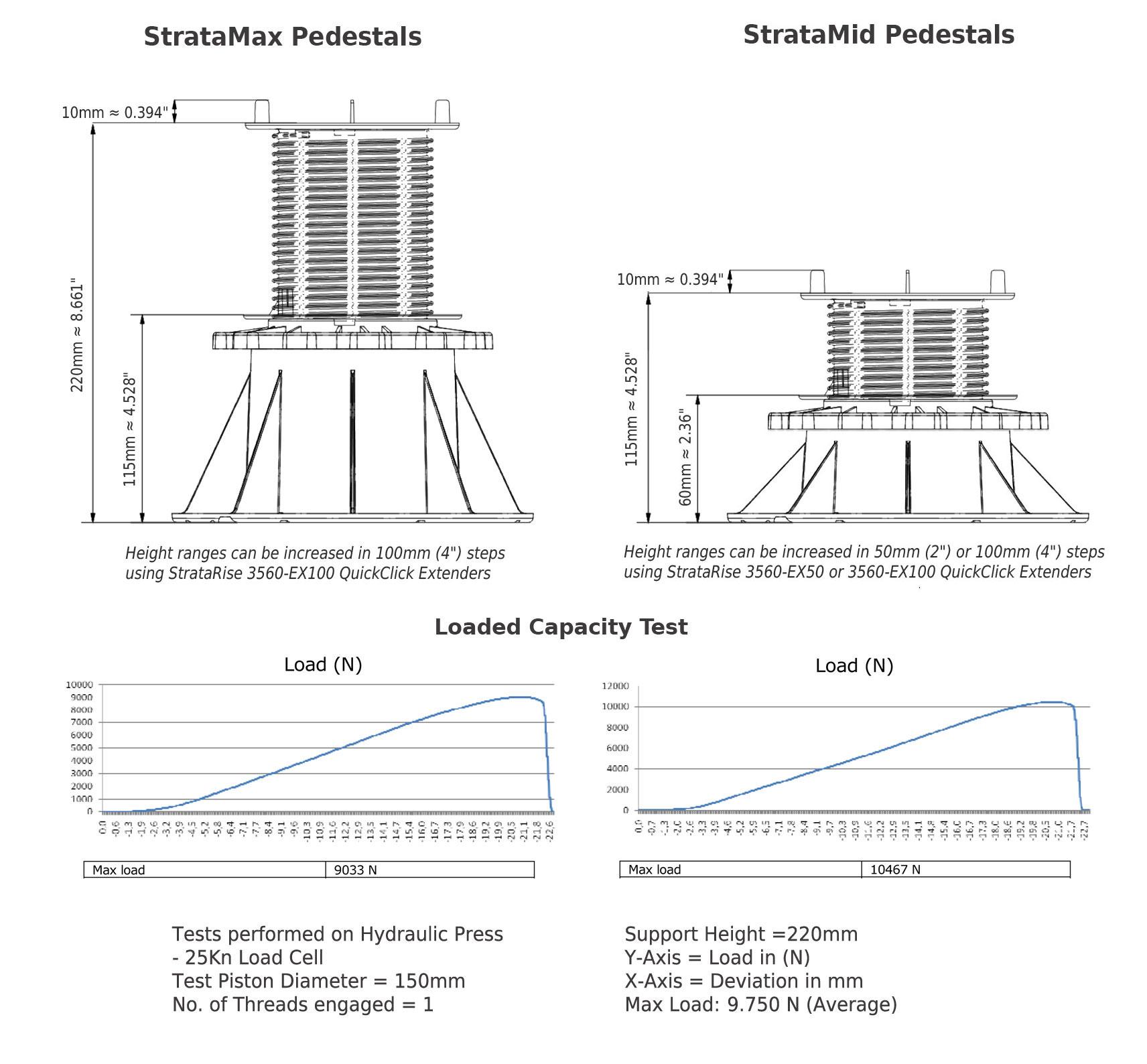

Stratarise 3560 Multi-Level Pedestals - Technical Data
Ref No. StrataMid 60115ML-P4-30 StrataMid 60115ML-DF-30 StrataMax 115220ML-P4-15 StrataMax 115220ML-DF-15
Description Mid Range Fixed Head Support Pedestal for Deck Tiles & Pavers Max Range Fixed Head Support Pedestal for Deck Tiles & Pavers
Height Adjustability 60mm (2.36") to 115mm (4.53") - P4 = 4mm (5/32") Spacers / DF = Decking/Flooring 115mm (4.53") to 220mm (8.66") - P4 = 4mm (5/32") Spacers / DF = Decking/Flooring
Pack Qty. 30 30 15 15
Pallet Pcs. 450 450 225 225

Suitable for laying over membranes and insulating panels

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.

Available in two versions, this versatile pedestal support can be used with any type of self-supporting deck tile, paver or joist system.

Designed for the Professional

Designed for the professional, with industry leading specifications, our pedestals are fast and easy to work with, allowing precise adjustment without any need to lift off pavers or tiles to make adjustments. Bayonet fitting extenders enable easy customisation to any height. With just 2 components (pedestal plus 100mm (4") extenders) you have the complete system to suit all heights from 110mm upwards and nearly every application. Lower profile versions are also available - see our 3560 & 1836 ranges.
