LeafGuard – Polypropylene Flat Roof Drain & Downpipe Protector
Used to prevent leaf and other blockages in downpipes and drainage outlets
LeafGuard – Polypropylene Flat Roof Drain & Downpipe Protector
Stop blockages before they start. The Leafguard flat roof drain protector is designed for flat roof drainage outlets, parapet drains, scuppers, and gutter downpipes, LeafGuard is a durable polypropylene filter that prevents leaves, moss, and debris from entering your drainage system.

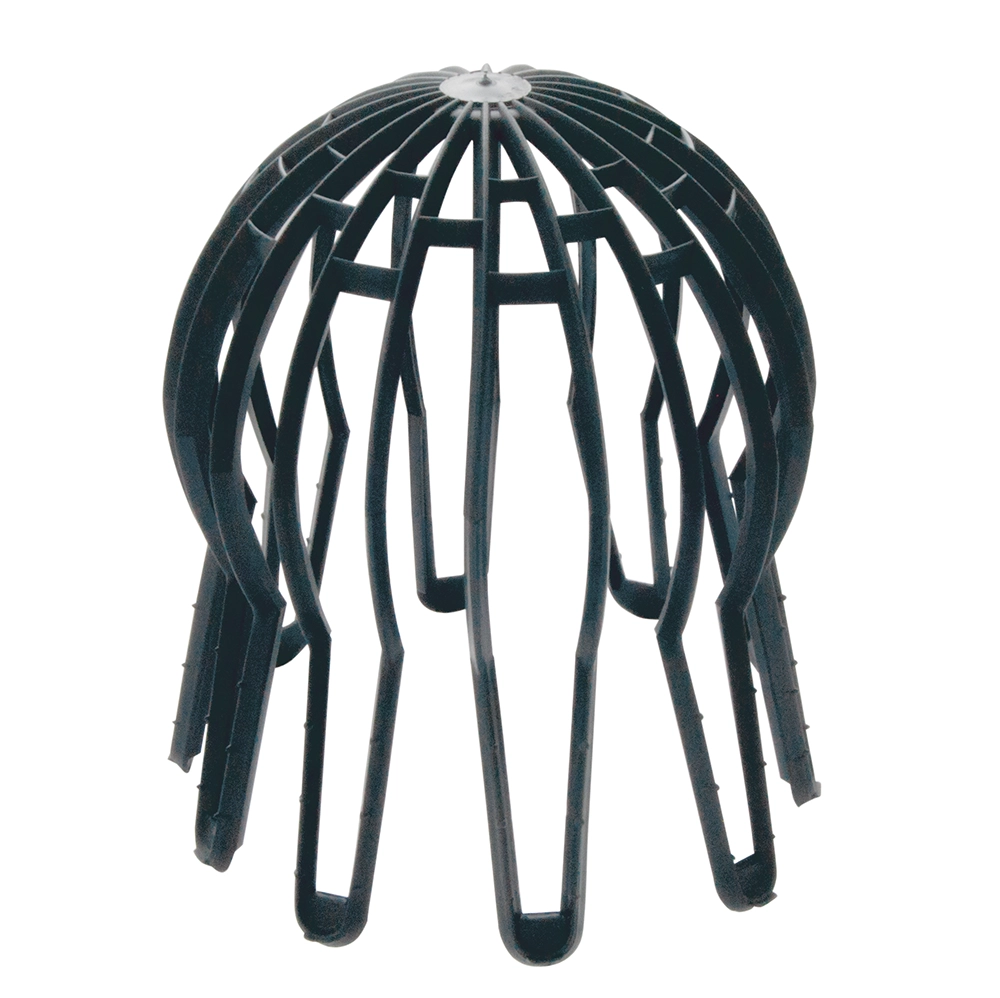

What Is LeafGuard?
LeafGuard is a lightweight yet robust polypropylene insert that fits neatly over or inside flat roof drainage outlets, hoppers, and downpipe openings. Its precision-engineered mesh or grille pattern allows rainwater to flow freely whilst capturing organic debris before it can cause costly blockages.
Unlike metal guards that rust or corrode, LeafGuard is 100% weather-resistant, UV-stabilised, and unaffected by standing water, making it ideal for the UK's year-round roof drainage demands.
Key Benefits
Prevents drain blockages – Stops leaves, twigs, moss, and bird droppings from entering downpipes and underground drains.
Reduces maintenance – Extends the interval between gutter and drain cleaning visits, saving time and labour costs.
Protects flat roof membranes – Eliminates standing water caused by blocked scuppers or parapet outlets, reducing the risk of ponding and membrane degradation.
Polypropylene construction – Won't rust, rot, or corrode. UV-stabilised for long-term outdoor use.
Easy to fit – Simply place over the outlet or push into the downpipe opening. No tools, adhesives, or specialist skills required.
Removable & cleanable – Lift out when necessary, rinse with a hose, and replace. Reusable for years.
Where to Use LeafGuard
| Location | Application |
|---|---|
| Flat roof scupper drains | Fits over opening to catch debris before discharge |
| Parapet wall outlets | Sits inside or over the spout or downpipe connection |
| Gutter downpipe hoppers | Drops into hopper head to filter rainwater |
| Internal roof drains | Covers strainer or grate for extra protection |
| Rainwater harvesting inlets | Pre-course filtration for storage systems |
| Ref No. | Description | Dimensions | Box Qty. |
| PLG-80/125-05 | Plastic Leaf Guard for gutters/pipes of various diameters | 80mm to 125mm | 1 pc. |
| PLG-80/125-10 | Plastic Leaf Guard for gutters/pipes of various diameters | 80mm to 125mm | 10 pc. |
| PLG-80/125-100 | Plastic Leaf Guard for gutters/pipes of various diameters | 80mm to 125mm | 100 pc. |
Technical Specifications
| Feature | Detail |
|---|---|
| Material | Polypropylene (PP) |
| UV stabilised | Yes |
| Corrosion resistant | Yes |
| Temperature range | -20°C to +80°C |
| Cleaning method | Hand rinse or jet wash |
| Reusable | Yes |

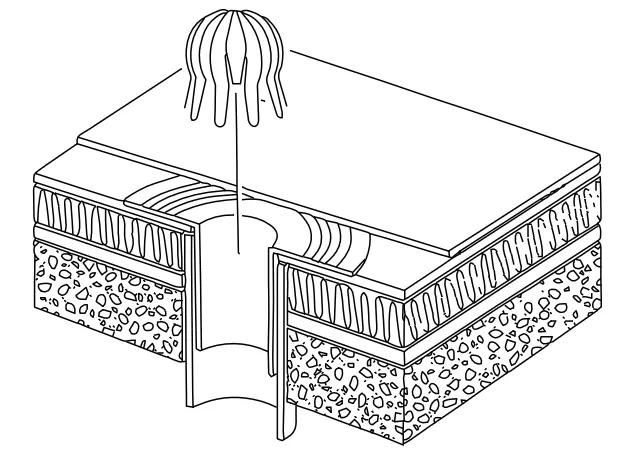

How to Install LeafGuard
Clean the outlet – Remove any loose debris from the drain opening or downpipe hopper.
Select the correct size – Choose a LeafGuard model that matches your drain diameter (standard sizes available).
Position the guard – Place over the scupper opening, parapet outlet, or drop into the downpipe hopper.
Check fit – Ensure the guard sits snugly but remains removable for cleaning.
Inspect periodically – Lift and rinse as needed (frequency depends on surrounding foliage).
No fixings, sealants, or tools required.
Why Choose Polypropylene Over Metal?
| Feature | Polypropylene LeafGuard | Metal Guards (Aluminium/Steel) |
|---|---|---|
| Rust or corrode | No | Yes, over time |
| UV stability | Excellent | Paint can peel |
| Weight | Very light | Heavier |
| Impact resistance | Good | Can dent |
| Cost | Lower | Higher |
| Maintenance | Rinse clean | May need repainting |
