Stratarise Titan HD Gravel & Grass Stabilisation Grids

Titan Permeable Gravel Grids are designed for heavy duty use in public and private locations for driveways, paths and parking areas.

Stratarise Titan Permeable Gravel & Paver Grids - 100% Recycled Polypropylene, 910 tonnes/m² (186,383 lb/ft²) Load Capacity, 39mm (1⁹⁄₁₆") Thickness

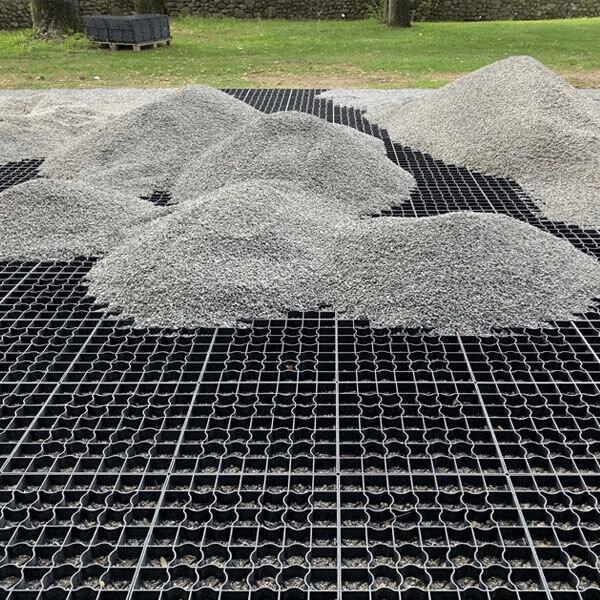

  • TOUGH AND SUSTAINABLE: Made from 100% recycled polypropylene, our gravel grid system is designed for outstanding durability and long-lasting performance. Supplied in Packs of 8 and 12 pieces, or in pallet quantities for larger projects.

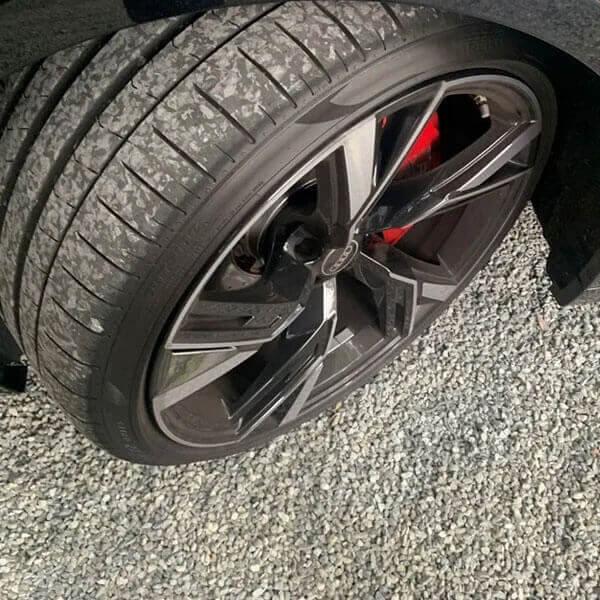

  • EXTREME LOAD CAPACITY: Engineered to support up to 910 tonnes/m² (186,383 lb/ft²) depending on the base and fill material, the Stratarise Titan grids provide exceptional stability for a variety of outdoor projects. Each grid tile measures 500 x 500 x 39mm (20 x 20 x 1⁹⁄₁₆").

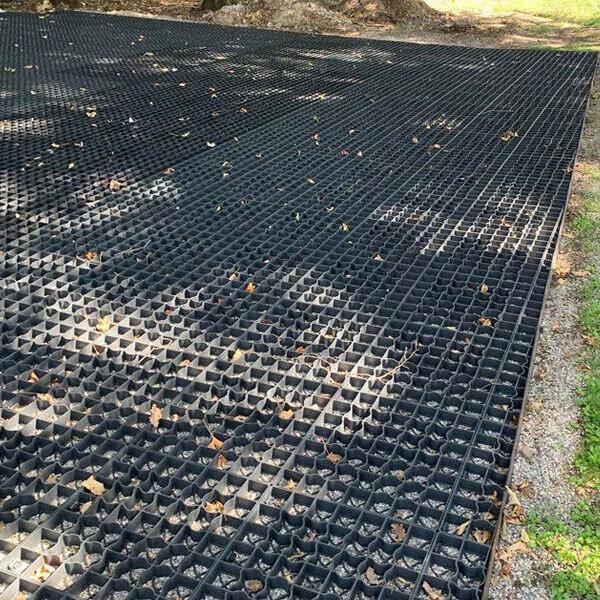

  • VERSATILE USAGE: Perfect for creating parking areas, driveways, walkways, and bases for garden sheds and structures, the Titan Permeable Grids are versatile and adaptable for multiple outdoor applications.

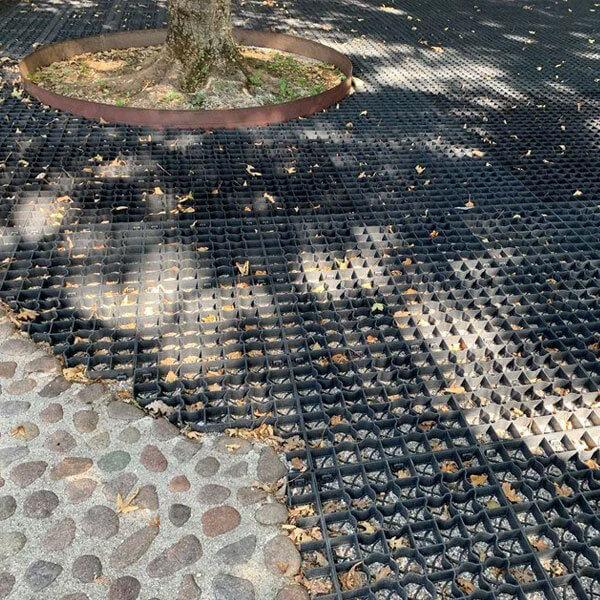

  • RELIABLE STABILITY: The innovative clip-together design on all four sides ensures strong connections and stability, making these grids ideal for heavy-duty use in diverse outdoor environments.

  • BUILT-IN SPACE FOR EXPANSION: The clip-together system has been designed with a built-in provision to allow for heat expansion in hot weather, eliminating risk of the grids buckling, lifting or deforming.

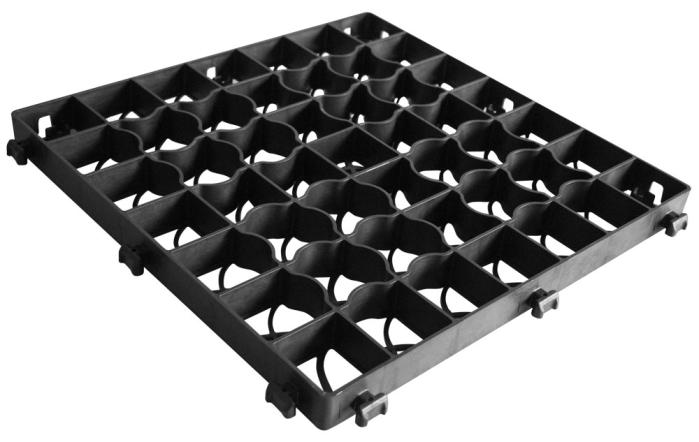

StrataRock Black Gravel Grid
Titan Permeable Paver Gravel Grids from Stratarise

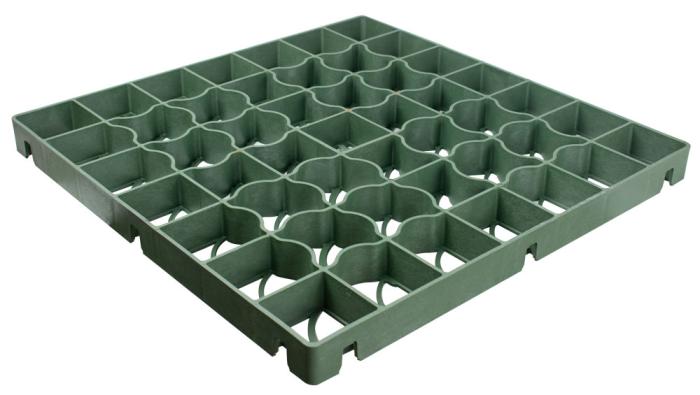

Titan Permeable Paver Gravel Grids in Green

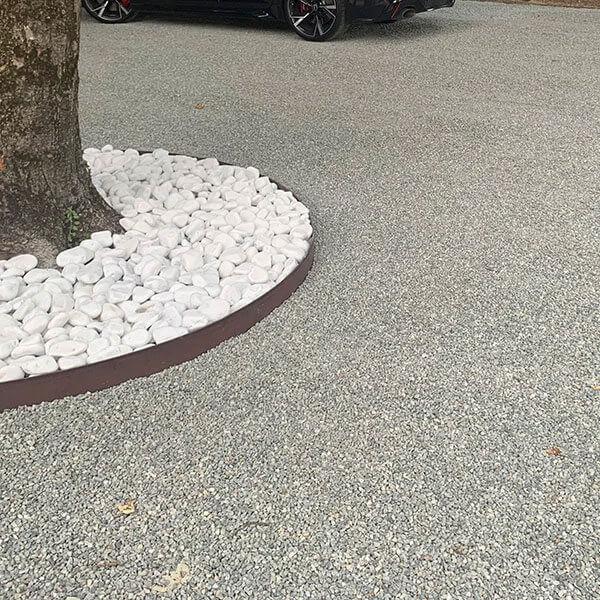

  • ENVIRONMENTALLY FRIENDLY CHOICE: Designed to handle heavy vehicles while allowing water to permeate through, the grids help reduce run-off and replenish groundwater. With the future prospect of councils levying stormwater fees and environmental taxes based on non-permeable surfaces at properties, these grids are a smart and eco-conscious alternative to traditional paving solutions.

Load Capacities
The average values of load class tests conducted according to EN ISO 844 are as follows:
  • Load at 3.8 mm (⅛”): 49.49 kN (11,125 lbf)
  • Max Load: 49,81 kN (11,198 lbf)
  • Deformation at max load: 3.50 mm (⅛”)
  • Stress: 76.97 N/mm² (11,163 lbs sq. in)
  • Max load grid: 2,232 kN (501,773 lb/f)
  • Load per sqm: 910 tonne ( 895 tons)
  • Ideal for creating permeable surfaces for car parks, driveways and paths
  • Suitable for use for either Gravel or Grass areas
  • ProHigh Quality product designed and produced in Ital
  • High Quality product designed and produced in Italy (copy)
  • Heavy Duty - Load 910 tonnes/m² (tested to EN ISO 844)
  • Available in Black and Green colors
  • Extra strong interlocking system with built-in thermal expansion space guarantees a perfect connection and stability over the entire surface.

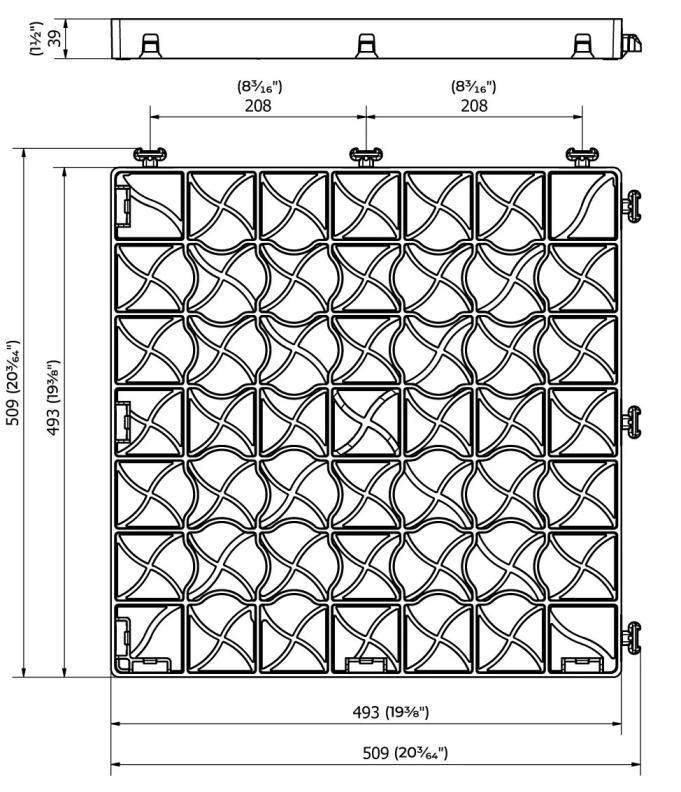

Titan Permeable Paver Gravel Grids technical information
Ref No.DescriptionHeight (in.)Box Qty.
TITAN-HD-BLK-08Stratarise Titan HD Permeable Paver / Gravel Grid - Black - 8 Pack (2m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")8 pcs.
TITAN-HD-GRN-08Stratarise Titan HD Permeable Paver / Gravel Grid - Green - 8 Pack (2m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")8 pcs.
TITAN-HD-BLK-12Stratarise Titan HD Permeable Paver / Gravel Grid - Black - 12 Pack (3m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")12 pcs.
TITAN-HD-GRN-12Stratarise Titan HD Permeable Paver / Gravel Grid - Green - 12 Pack (3m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")12 pcs.
TITAN-HD-BLK-140Stratarise Titan HD Permeable Paver / Gravel Grid - Black - Half-pallet 140 pcs (35m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")140 pcs.
TITAN-HD-GRN-140Stratarise Titan HD Permeable Paver / Gravel Grid - Green - Half-pallet 140 pcs (35m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")140 pcs.
TITAN-HD-BLK-240Stratarise Titan HD Permeable Paver / Gravel Grid - Black - Pallet 240 pcs (60m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")240 pcs.
TITAN-HD-GRN-240Stratarise Titan HD Permeable Paver / Gravel Grid - Green - Pallet 240 pcs (60m²)500 x 500 x 39 (20 x 20 x 1⁹⁄₁₆")240 pcs.
