1836LP-P2 & P4 Low Profile Fixed Head Pedestals for Pavers & Tiles

Adjustable from  18mm to 36mm (0.7" to 1.4") - designed for low threshold height projects

StrataRise Low-Profile 1836 Fixed Head Pedestals for Pavers, Slabs and Tiles are adjustable from 18mm to 36mm (0.7" to 1.4"). This is a specially designed support for use in areas where low threshold heights are encountered.

Each support is composed of a threaded head section with 4 removable tabs 2mm (5/64") or 4mm (5/32") in width for paver, slab or tile spacing. The spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centres of large slabs, or on sides.

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation. As standard, each Low-Level 1836 pedestal comes complete with one 9mm (0.35") extender ring (this can be fitted by lifting the head out of the base, inserting the ring and replacing the head).

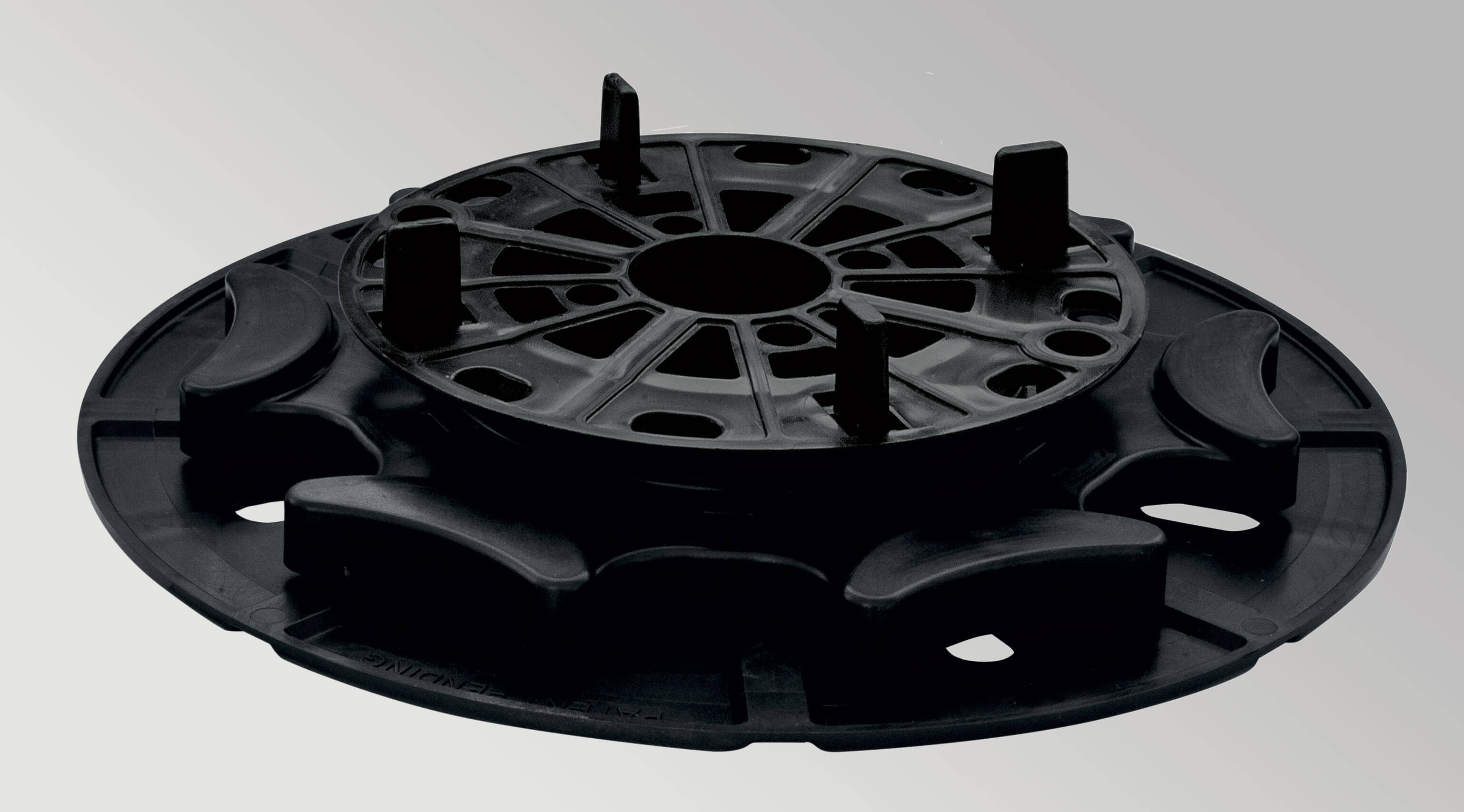

Stratarise 1836 Low Profile Fixed head Paver Pedestal

A large 200mm (8") base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations. An anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where tiles are mounted on balconies or roof areas, as well as for floors in multi-occupancy buildings.

We recommend the use of our optional acoustic cushioning rings for the support head area for tile and paver installations. These help to bed tile corners securely, prevent any rattling, and reduce transmitted noise through the support system.

StrataRise pedestals are robust and can withstand high loads of at least 800kg (1760 lbs) at maximum height extension (i.e. with one thread engaged). Normal pedestal spacing for installations is at 500mm to 600mm (20" to 24") centers along each joist for most projects.


StrataRise Pedestals ... the professional's choice!

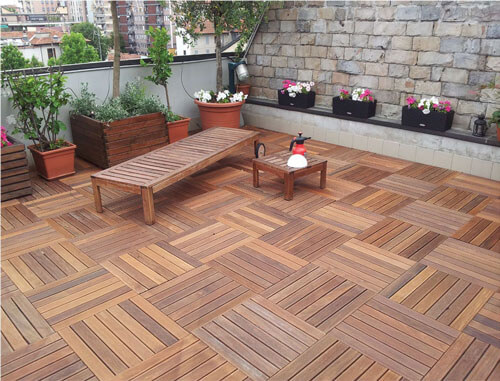

Deck Tile Floor Levelled on Stratarise Pedestals

Technical Data

Stratarise 1836 Low Profile Pedestals - Technical Data
Ref No. 1836LP-P4-30 1836LP-P4-10 1836LP-P4-30 1836LP-P4-10 1836-EX9-30
Description Low Profile Joist Support Pedestal with 4 spacer tabs Height Extender Ring
Height Adjustability 18mm to 36mm (0.7" to 1.4") - P2 = 2mm (5/64") / P4 = 4mm (5/32") Spacers 9mm (3/8")
Pack Qty. 30 10 30 10 30
Pallet Pcs. 1350 900 1350 900 n/a

Suitable for laying over membranes and insulating panels

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.

Available in two versions, this versatile pedestal support can be used with any type of self-supporting tile or paver.

Designed for the Professional

Designed for the professional, with industry leading specifications, our pedestals are the fastest and easiest to work with, allowing precise adjustment without any need to lift off the paver or tile to make adjustments. Each 1836LP Pedestal is supplied with one 3/8" (9mm) height extender ring as standard.

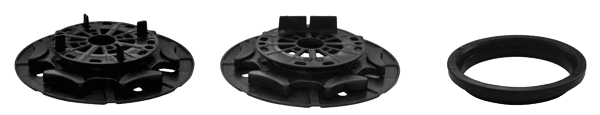

Stratarise 1836 Low Profile Pedestals
