Accessories for StrataRise Pedestal Supports
Base Pads, Height and Slope Adjusters, Acoustic Rings, etc.
Important: When installing high-rise decks or floors it is essential that the structure is securely anchored to prevent any lateral movement.
Quickclick Height Extenders for 3560ML & 4166ML Pedestals
25mm Height Extender - 3560-EX25
50mm Height Extender - 3560-EX50
100mm Height Extender - 3560-EX100
Acoustic and Slope Adjustment items for all StrataRise Pedestals
Acoustic Rings
The Self-Levelling head can be fitted onto 1836LP P2 or P4 Pedestals by first removing the spacer fins
Self-Levelling Head for Joist Support
The Self-Levelling head can be fitted onto 1836 or 3560 P2 or P4 Pedestals by first removing the spacer fins. This will convert the fixed head pedestals to be self-levelling. Available in boxes of 15 pieces - SLH-DF-15

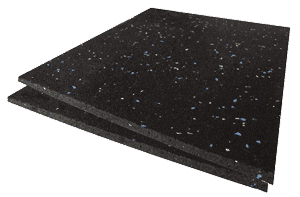

Base Pads 200mm
Anti-slip cushioning pads - 200mm dia. (or square as available) - ABP200-3-30

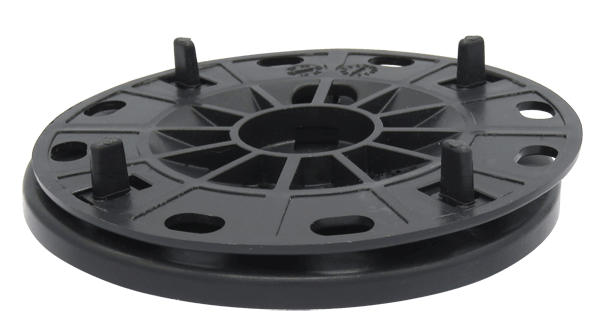

Self-Levelling Head with 2mm or 4mm spacer fins
The Self-Levelling head can be fitted onto 1836 or 3560 P2 or P4 Pedestals by first removing the spacer fins. This will convert the fixed head pedestals to be self-levelling. Available in boxes of 15 pieces - SLH-P2-15 or SLH-P4-15

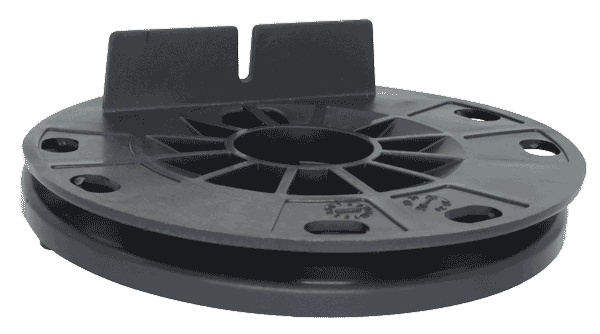

Self-Levelling Head for Joist Support
The Self-Levelling head can be fitted onto 1836 or 3560 P2 or P4 Pedestals by first removing the spacer fins. This will convert the fixed head pedestals to be self-levelling. Available in boxes of 15 pieces - SLH-DF-15
9mm Extender Ring
9mm Extender Ring for 1836 & 2442 Low Profile Pedestals - EX9-30.
Rubber Pads - General use
100mm x 100mm x 10mm multi-purpose Rubber Base Pads - RBP100-24.
Ref No. Description Pack pcs. Pallet pcs.
3560 EX25 Extension 25mm for 3560 Multi-Level Pedestals 30 2700
3560 EX50 Extension 50 mm for 3560 Multi-Level Pedestals 30 1620
3560 EX100 Extension 100 mm for 3560 Multi-Level Pedestals 30 1200
1836 EX9 Extension Ring 9mm for 1836 Low Profile Pedestals 30 3780

SAR1 Slope Adjuster - 1° Ø 120mm 30 -
SAR3 Slope Adjuster - 3° Ø 120mm 30 3240
SAR5 Slope Adjuster - 5° Ø 120mm 30 -

 SLH-P2-15  Self-Levelling Head with 2mm Spacer Fins for Pavers and Tiles  15 -
 SLH-P4-15  Self-Levelling Head with 4mm Spacer Fins for Pavers and Tiles  15 -
 SLH-DF-15  Self-Levelling Head with Flange for Joists for Flooring and Decking  15 -

AS120-3-180 Acoustic cushioning rings Ø 120mm x 2mm 180 12960
ABP200-3-30 Base rubber pad 200mm Ø x 3mm or 210mm square (as available) 30 -
ABP200-3-BULK Base rubber pad 200mm x 200mm x 3mm min. 500 -
RBP100-24 Rubber Base Pads 100mm x 100mm x 10mm  general use 24 -
RBP100 BULK Rubber Base Pads 100mm x 100mm x 10mm  general use min. 500 -
